Monitoring Device

Pocket Dongle

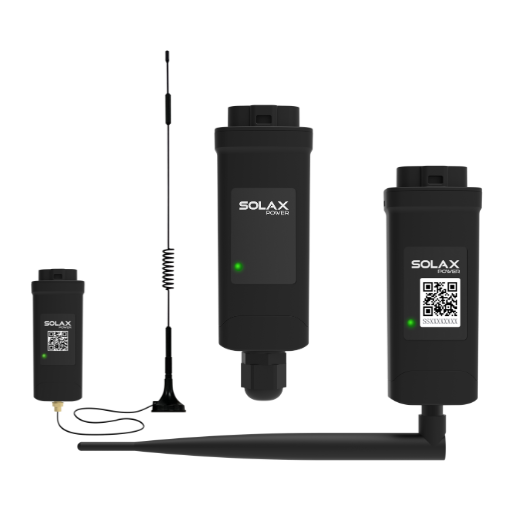

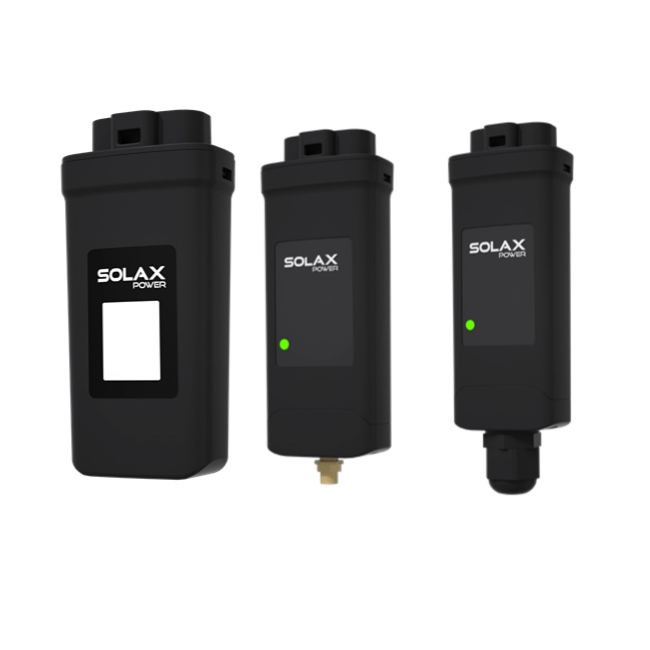

Pocket WiFi V3.0-P / Pocket WiFi+LAN / Pocket WiFi+4GM

The Pocket Series by SolaX—including Pocket WiFi V3.0-P, Pocket WiFi+LAN, and Pocket WiFi+4GM—features a sleek, plug-and-play form factor with robust IP65 waterproof and dustproof protection. These models adapt effortlessly to deliver uninterrupted communication between your solar system and the cloud.

Watch Video
Data Download

Product Advantage

The SolaX Pocket communication devices offer fast 10-second live data refresh, offline data storage and resume. The SolaX Pocket series are ideal for scalable solar and energy applications.

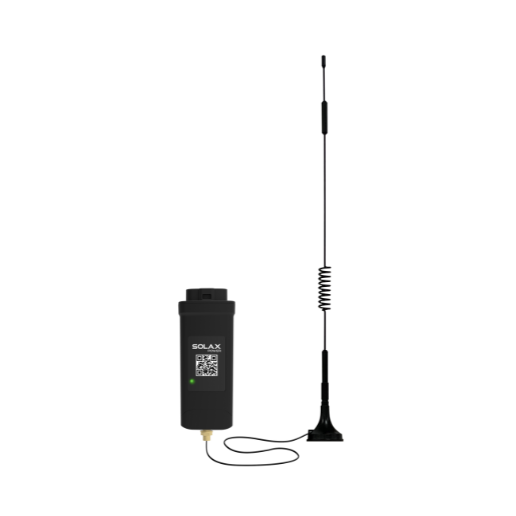

Pocket WiFi+4GM

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
IEEE2030.5 support*
OpenADR Support

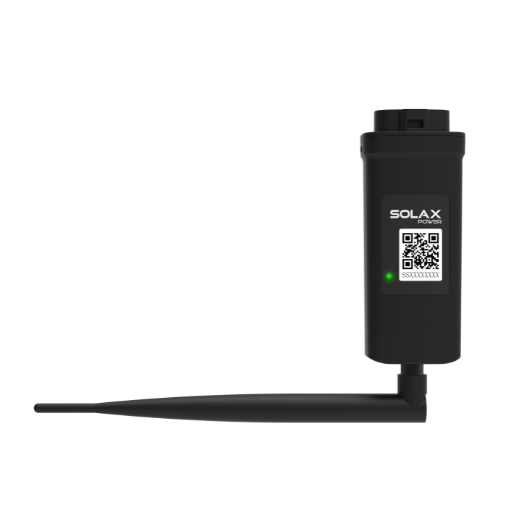

Pocket WiFi+LAN

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*
OpenADR support*
Supports automatic switching between WiFi and LAN in different scenarios

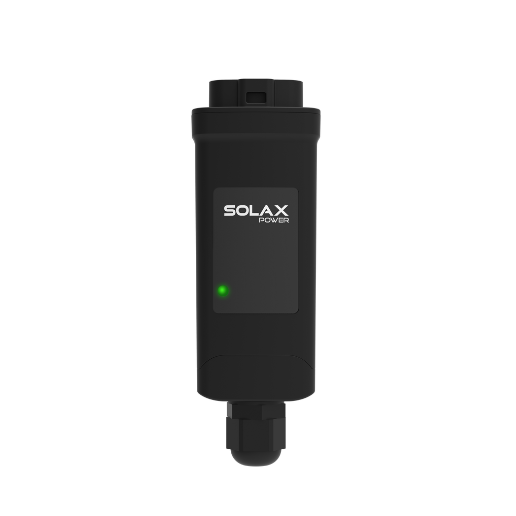

Pocket WiFi V3.0-P

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
IEEE2030.5 support*
OpenADR support*

Product Parameters

Pocket WiFi V3.0-P
Pocket WiFi+LAN
Pocket WiFi+4GM

Pocket WiFi V3.0-P
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 107 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi+LAN
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 80 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi+4GM
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 124 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
