Hybrid Inverter

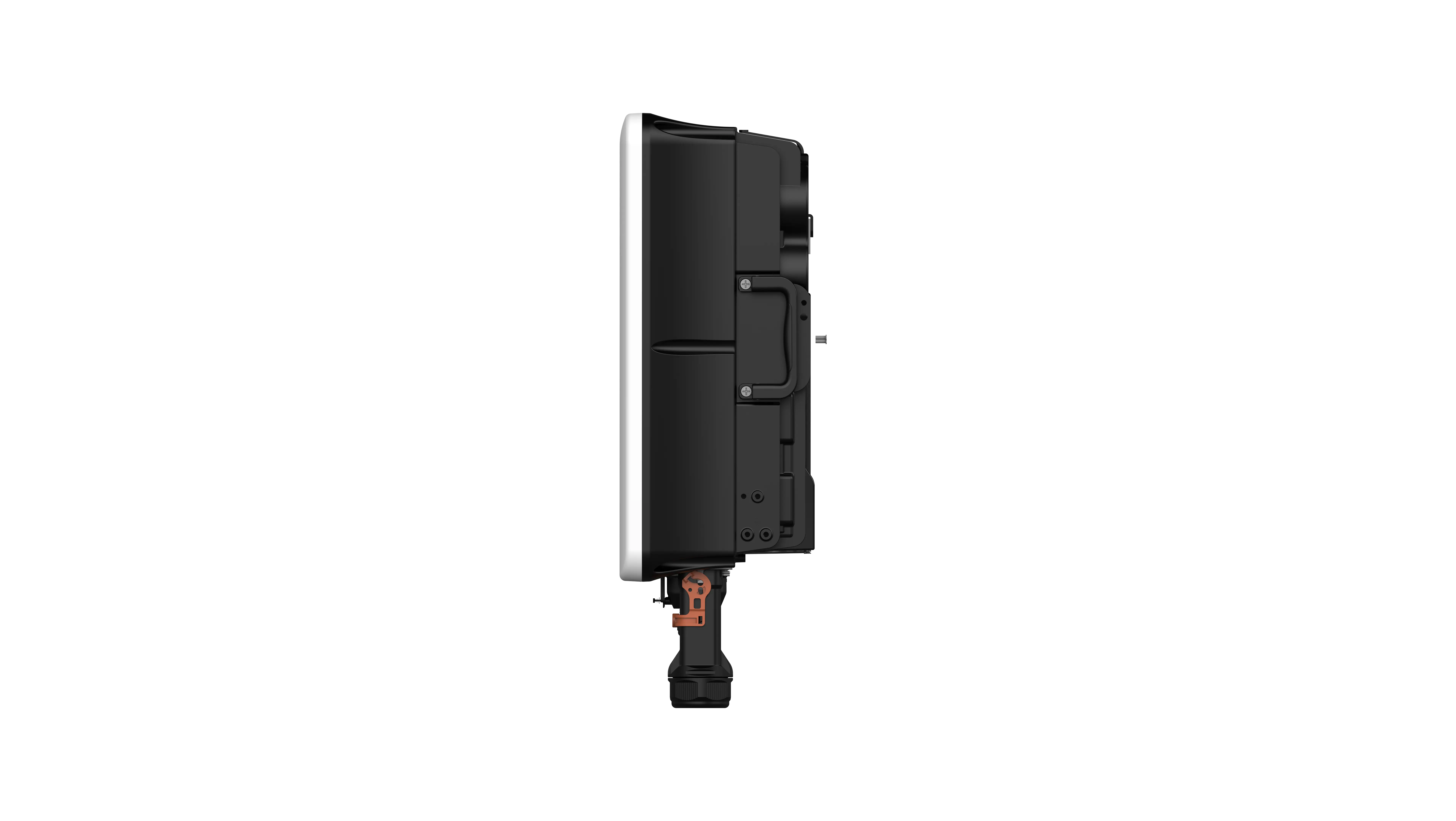

X3-HYB-G4 PRO

  • 4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

The SolaX X3-HYBRID G4 PRO inverter features a triple MPPT system with 20A input per tracker and a wide 110–950V voltage range, maximizing solar yield across diverse installations. Equipped with V2X readiness, intuitive controls, and full VPP compatibility, it’s built for tomorrow’s energy needs.

Product Advantage

Its robust input architecture handles up to 200% PV input and supports unbalanced three-phase loads up to 5kW per phase. Dual battery ports and a 2-in-1 expansion function offer flexible storage configurations, while additional wiring ports and a sleek wiring cover ensure streamlined, professional installations.

Contact Us

High Performance

  • 20A DC input per MPPT with 3 trackers

  • 200% PV oversizing and up to 110% AC output

  • Ultra-wide MPPT range of 110-950V

Smart Management

  • V2X ready for smart home energy integration

  • Smart Schedule, Smart Scene, and 7*24h TOU

  • Wireless meter compatibility

  • VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)

Flexible Adaptability

  • Dual battery ports & 2-in-1 function for expansion

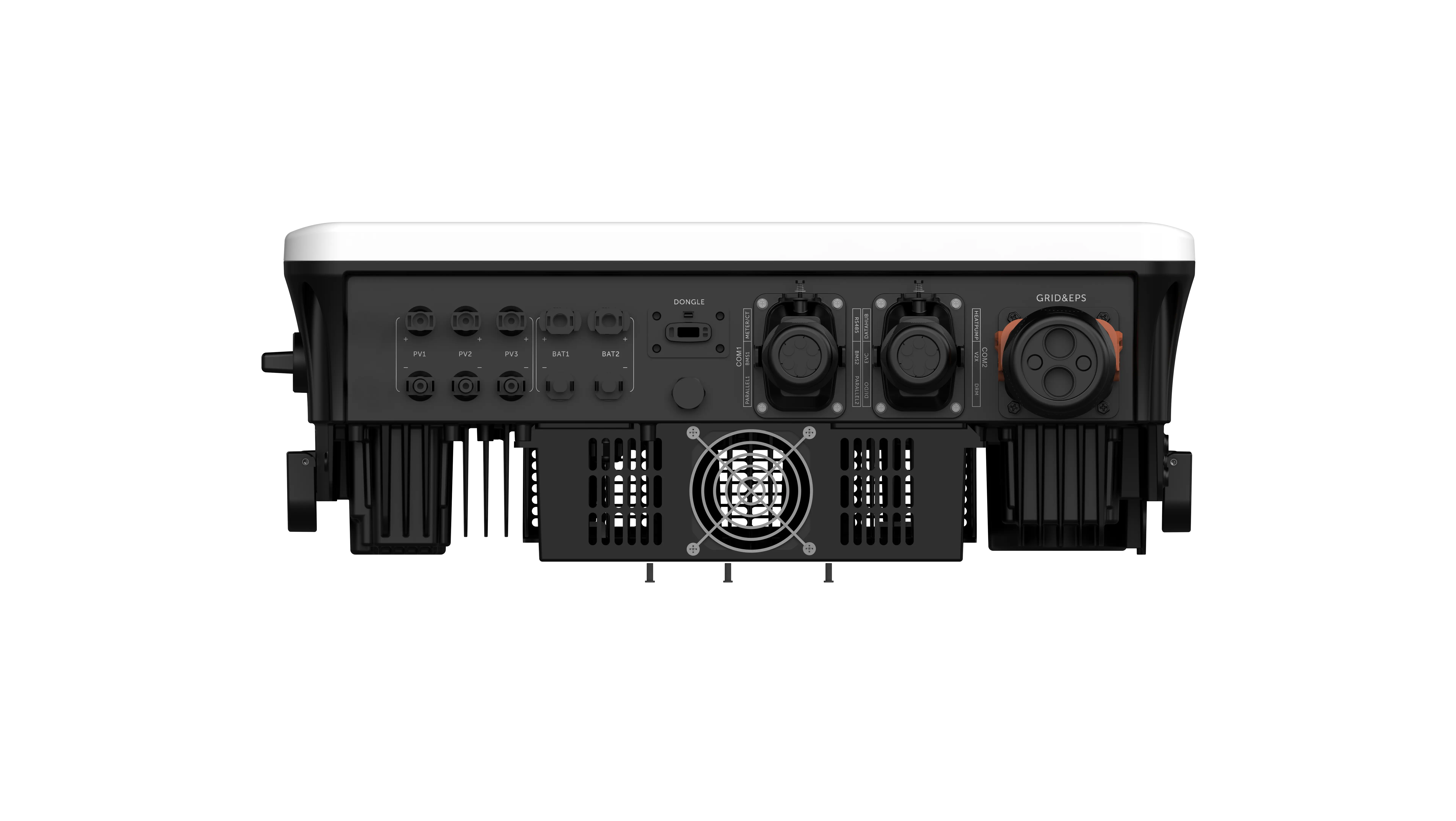

  • Additional ports for simplified wiring and installation

  • Functional and stylish wiring cover

  • Microgrid and generator modes for versatile operations


Assured Reliability

  • Up to 200% EPS output for 10s

  • UPS-level switchover time<10ms

  • Optional Rapid Shutdown function for enhanced safety

  • Type II SPD on AC&DC side

  • Optional AFCI protection*

Product Parameters

  • X3-HYB-4.0-P
  • X3-HYB-5.0-P
  • X3-HYB-6.0-P
  • X3-HYB-8.0-P
  • X3-HYB-10.0-P
  • X3-HYB-12.0-P
  • X3-HYB-15.0-P
  • X3-HYB-4.0-P
    • PV INPUT
      Max. recommended PV array power8 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power4000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-5.0-P
    • PV INPUT
      Max. recommended PV array power10 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power5000 W

      (AS 4777 4999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-6.0-P
    • PV INPUT
      Max. recommended PV array power12 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT20A/20 A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power6000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-8.0-P
    • PV INPUT
      Max. recommended PV array power16 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A / 20A / 20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power8000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-10.0-P
    • PV INPUT
      Max. recommended PV array power20 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power

      10000 W

      (AS 4777 9999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-12.0-P
    • PV INPUT
      Max. recommended PV array power24 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power12000 W
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg


  • X3-HYB-15.0-P
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range110~950V
      No. of MPP. trackers / strings per MPPT3(1/1/1)
      Max. input current per MPPT20A/20A/20A




    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power

      15000 W

      (4S 4777 14999 W)

      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<10 ms



    • GENERAL
      Ingress protectionIP66
      Dimensions (W /H / D)560x503x210 mm
      Net Weight38 kg
