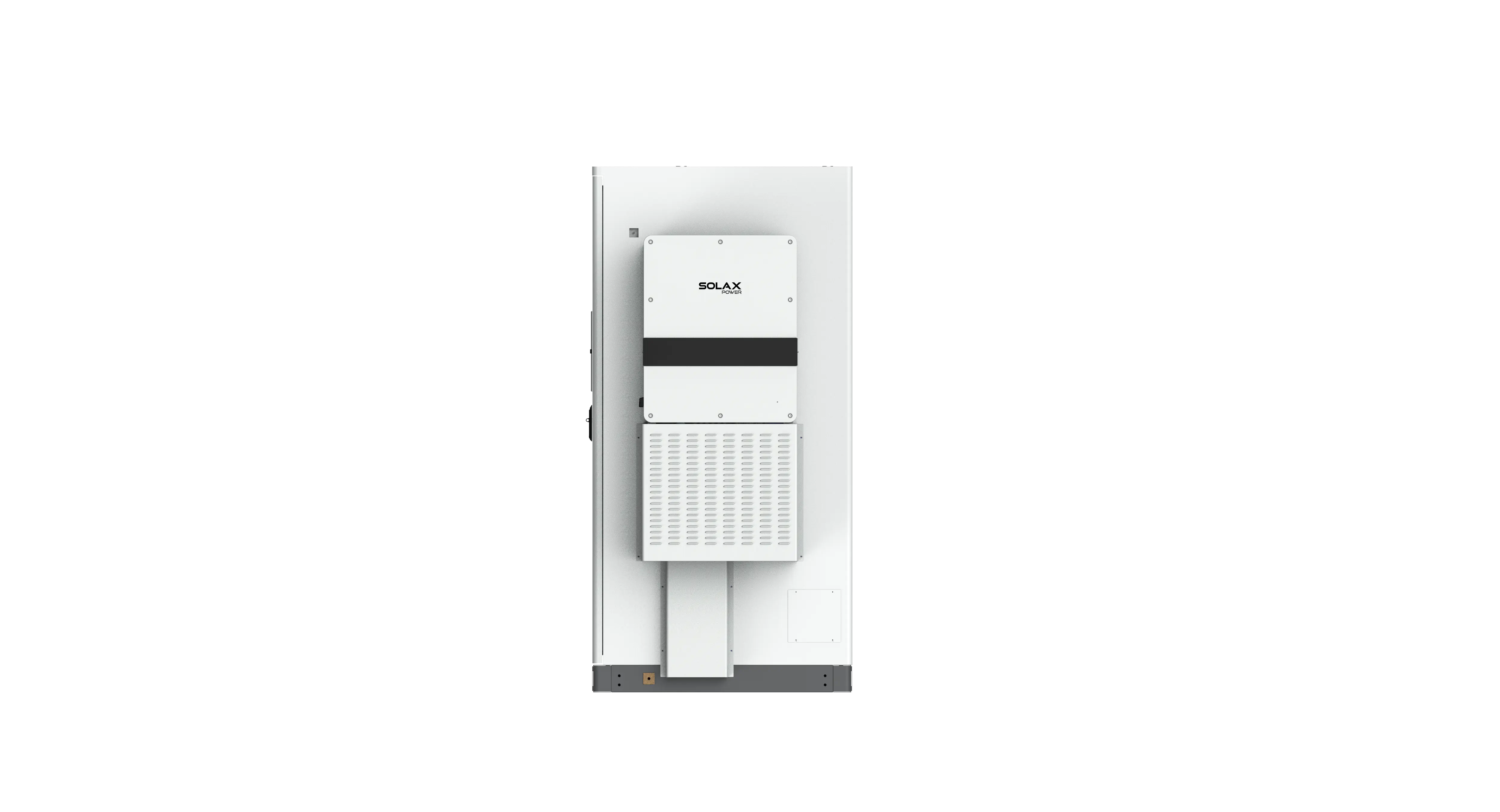

Hybrid C&I ESS Cabinet | P50B100 | P50B200 | P60B100 | P60B200
Support both on-grid and off-grid operation
Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s
Support unbalanced loads on three phases
AI ready, forecasting solar generation and load consumption, smart energy management strategy
Support smart scene function, intelligent loads management(e.g., Heat pump，EV charger)*
VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
Support Micro-grid and a variety of scenarios
Support 7×24h remote O&M and schedule deployment
Support wireless meter solution
Four-level fire safety protection
IP66 protection for Inverter and IP54 for cabinet
AFCI optional
AC&DC SPD type II, always guarding the inverter
Smart IV Curve scan for early panel diagnosis
Maximum 200% PV oversized input
Maximum 40A input current per MPPT, support high power solar panel
Global MPP SCAN boost solar energy harvest Advanced LFP battery, single cabinet with up to 200kWh, expandable to MWh

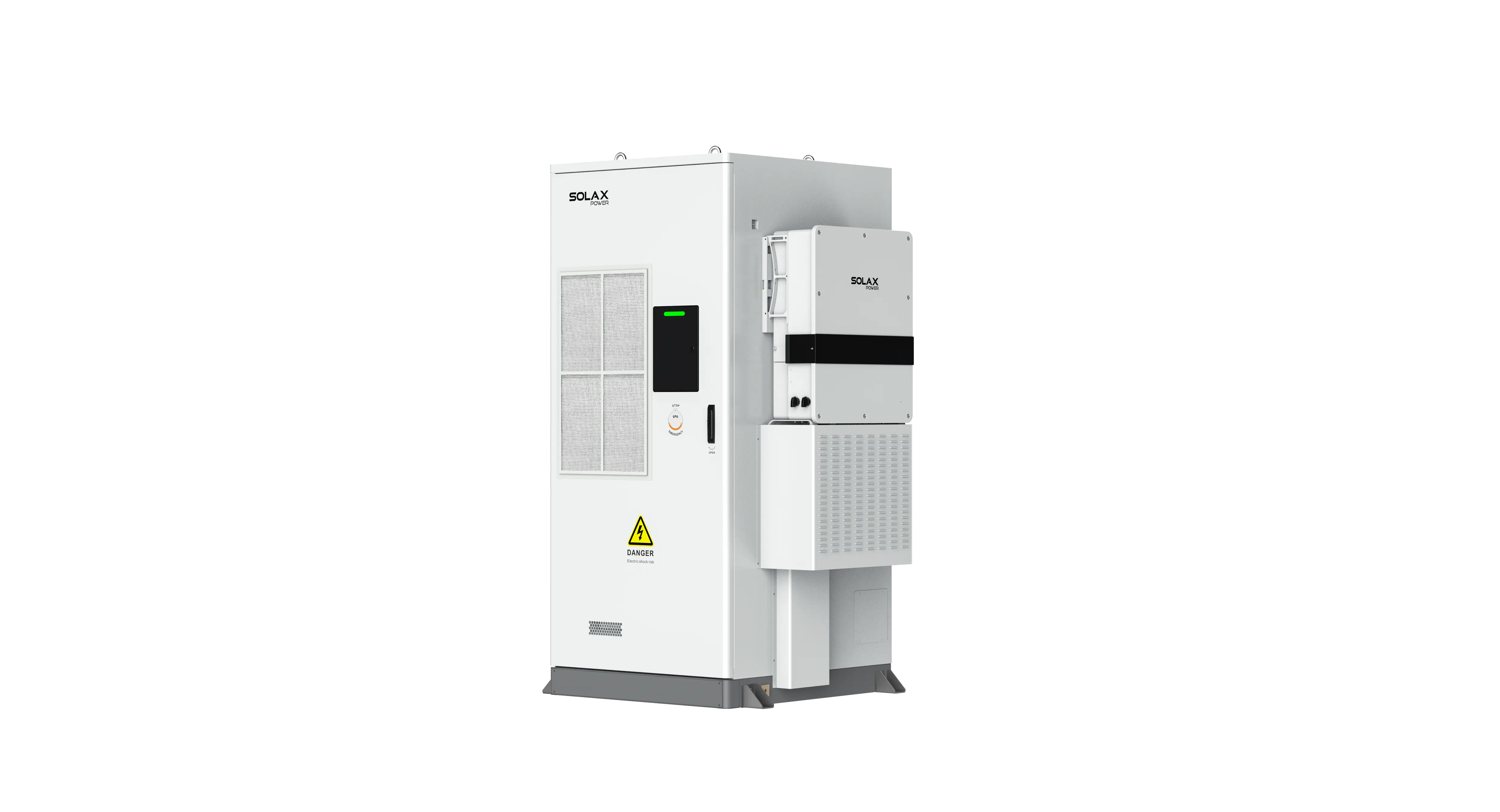

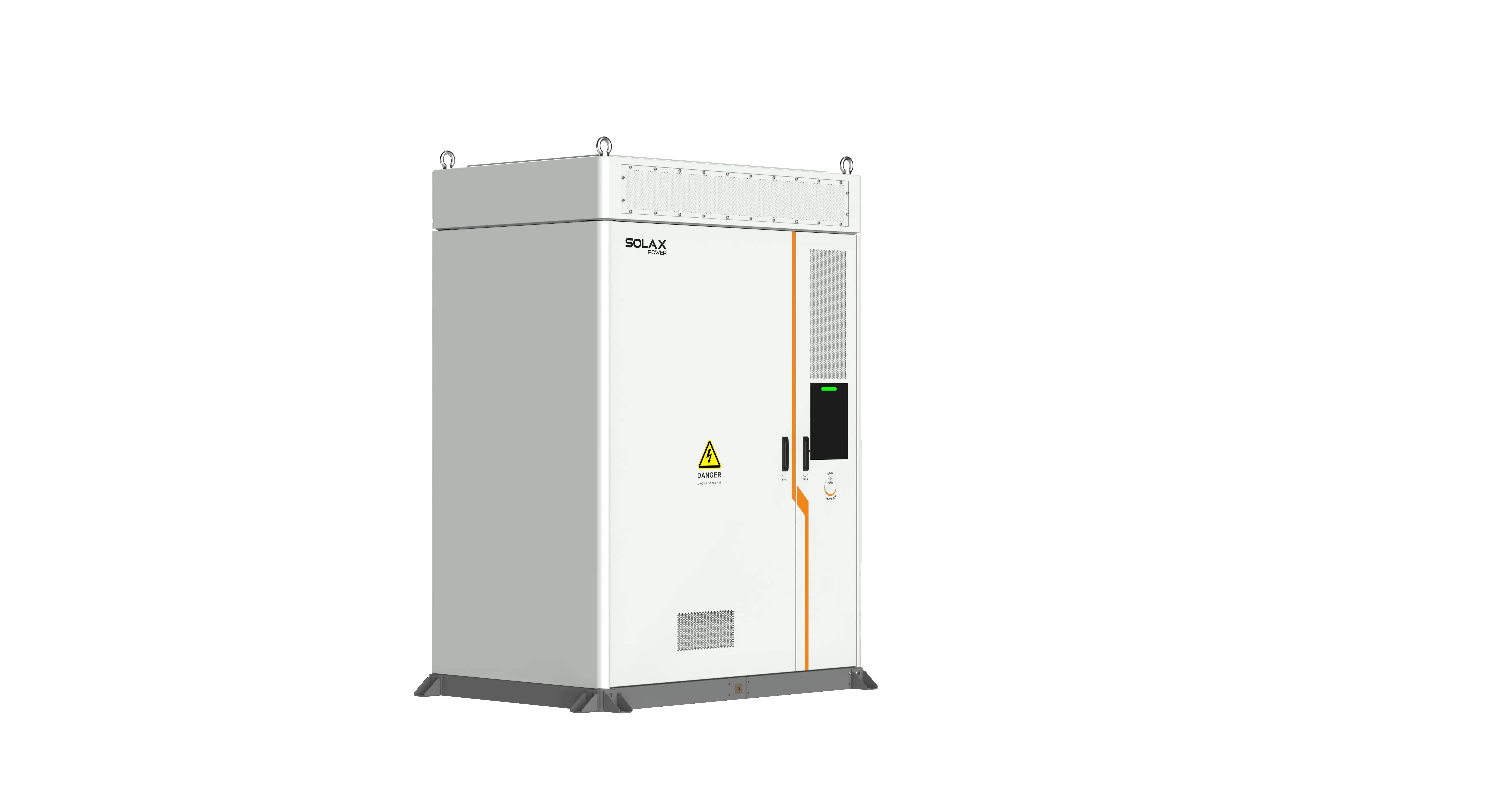

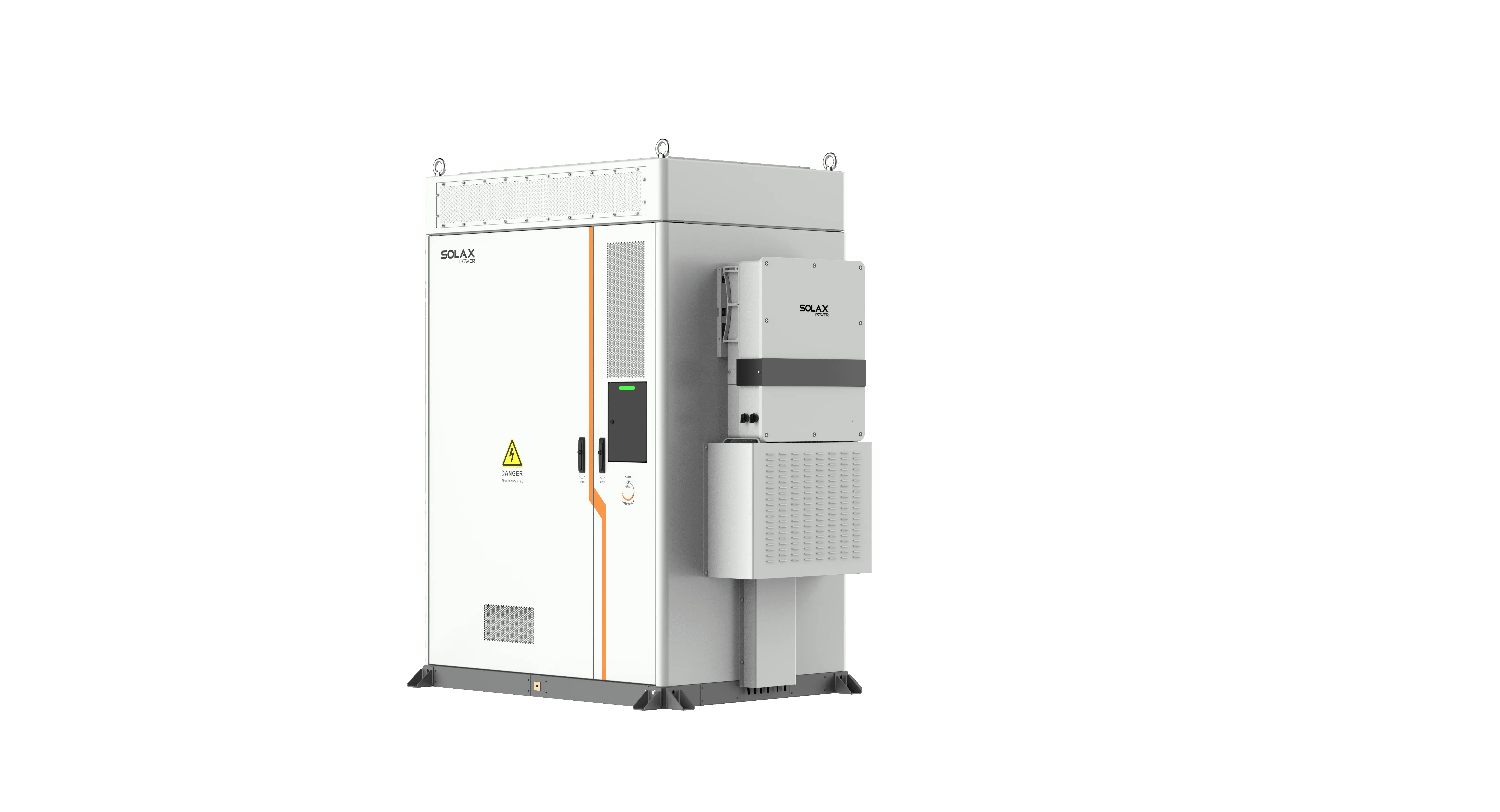

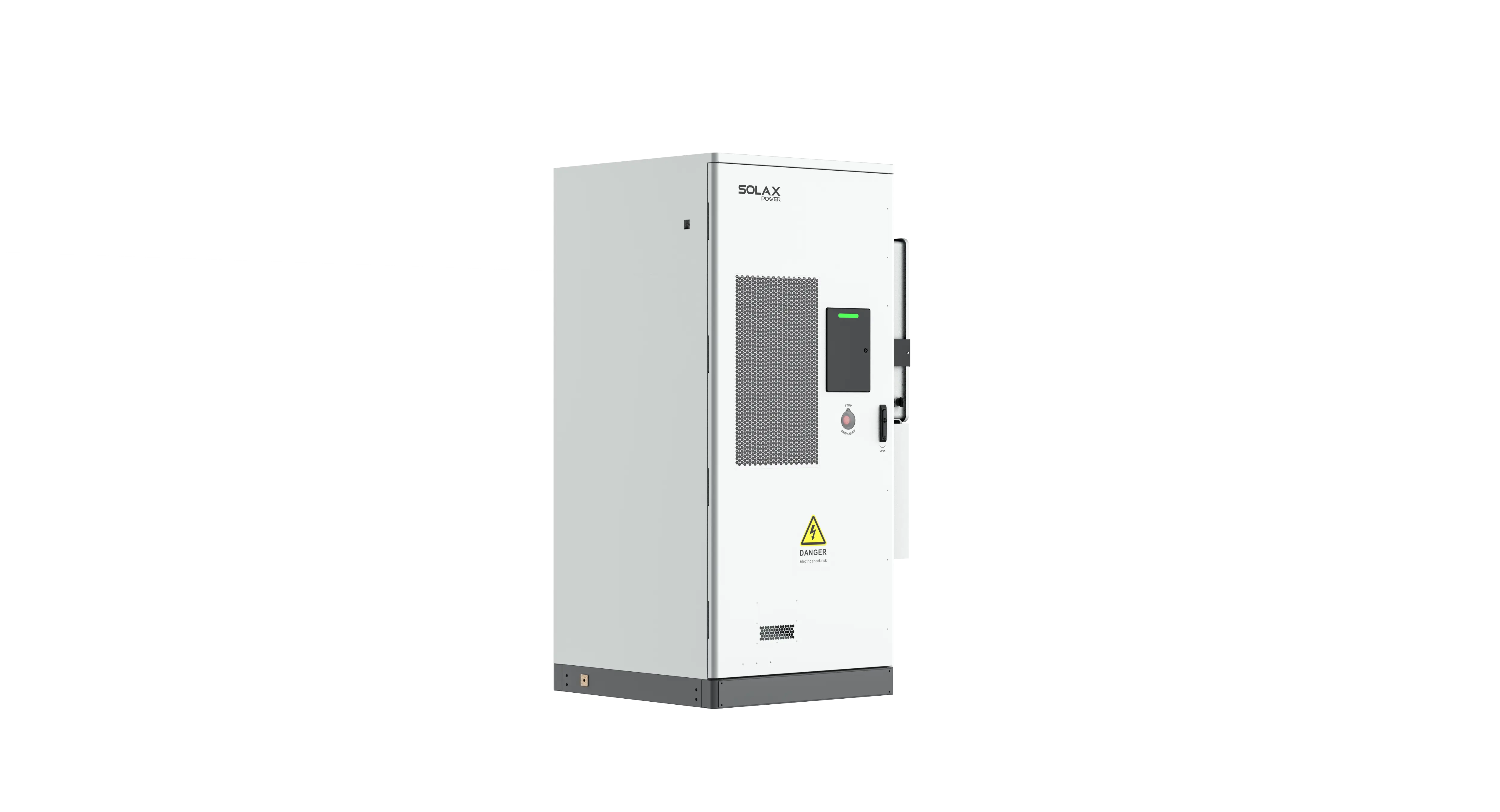

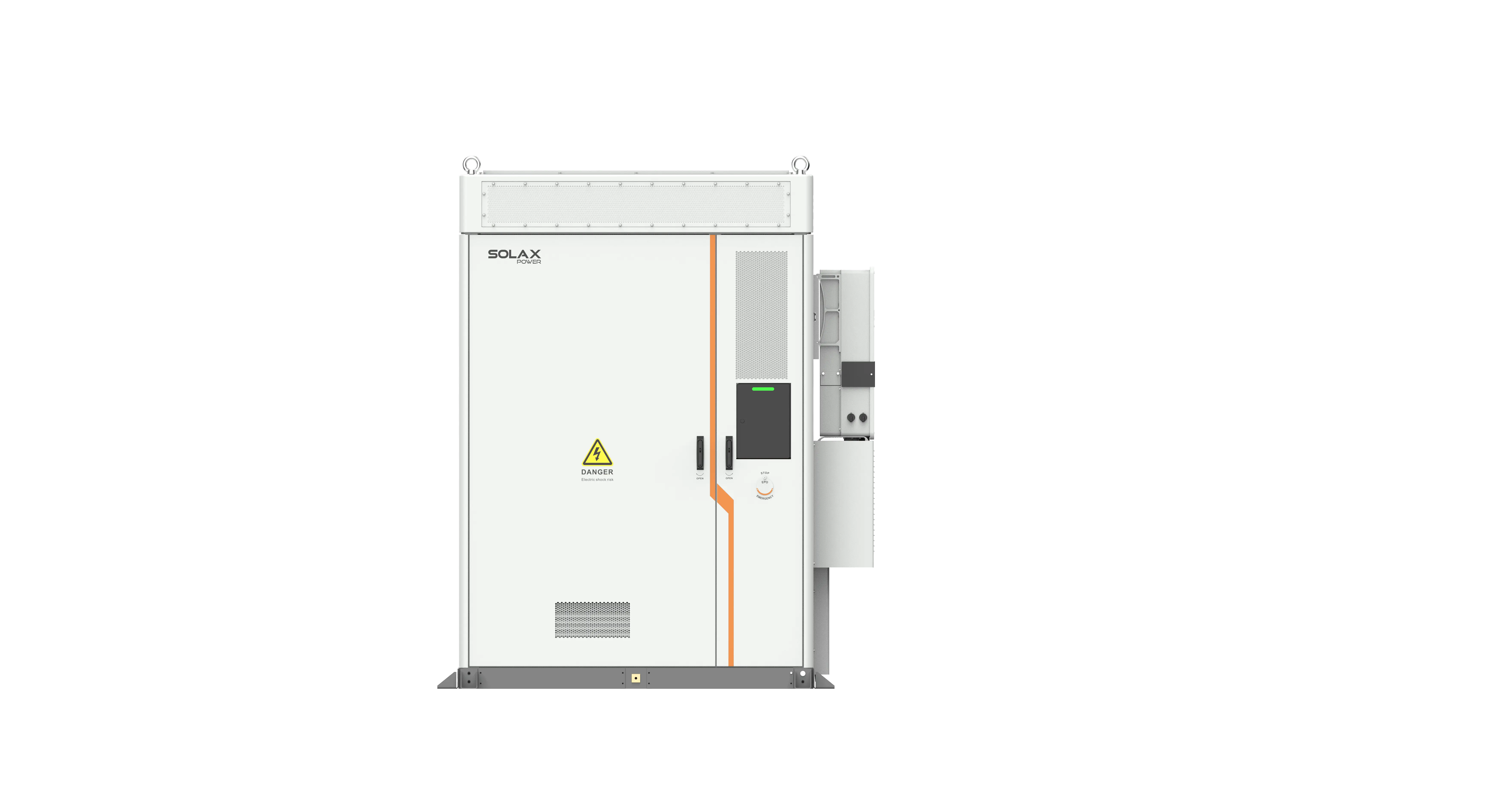

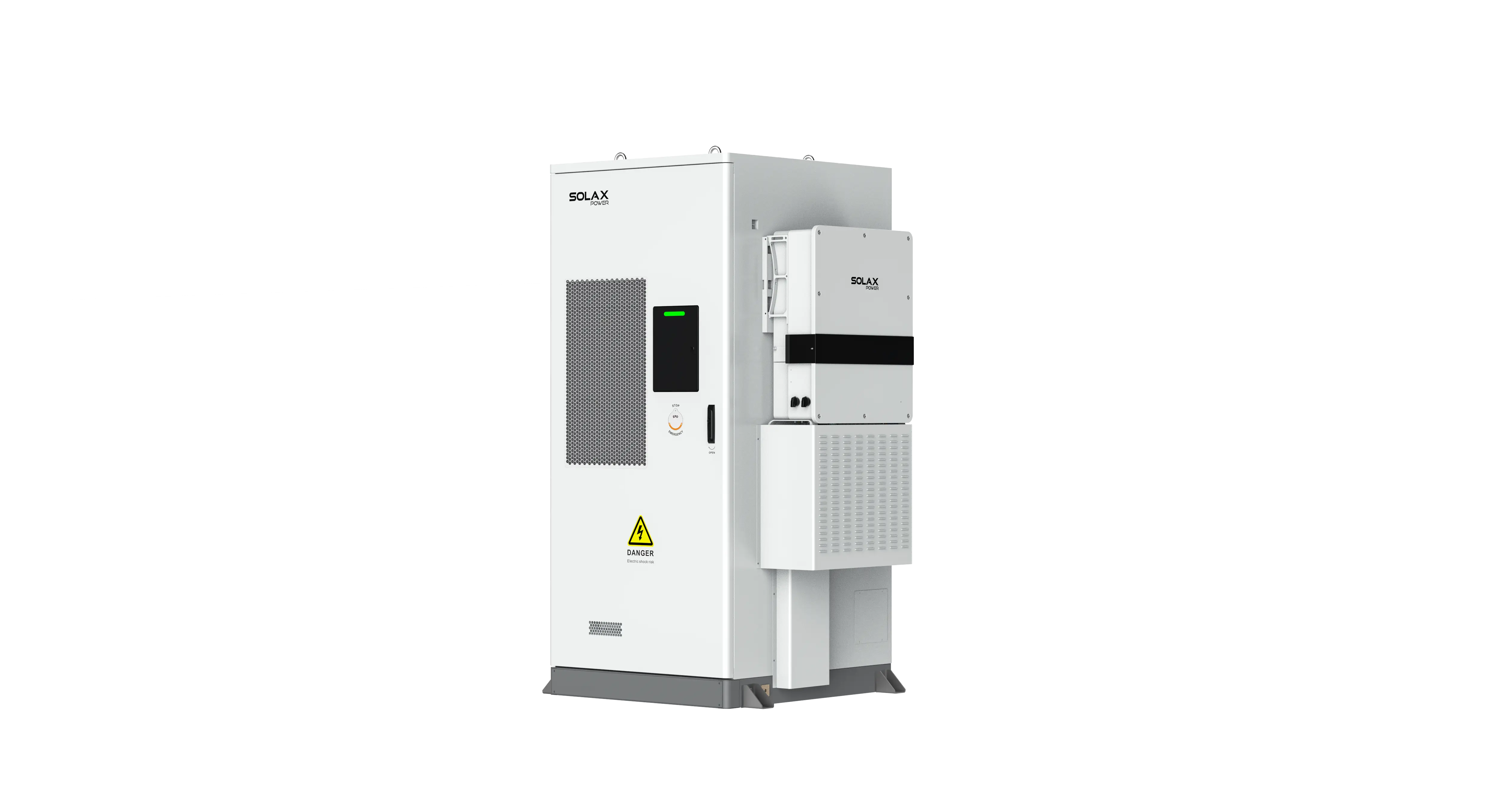

Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage cabinet with multiple application scenarios. It has outstanding advantages such as intelligent charge and discharge management, safety and reliability, and simple operation and maintenance.

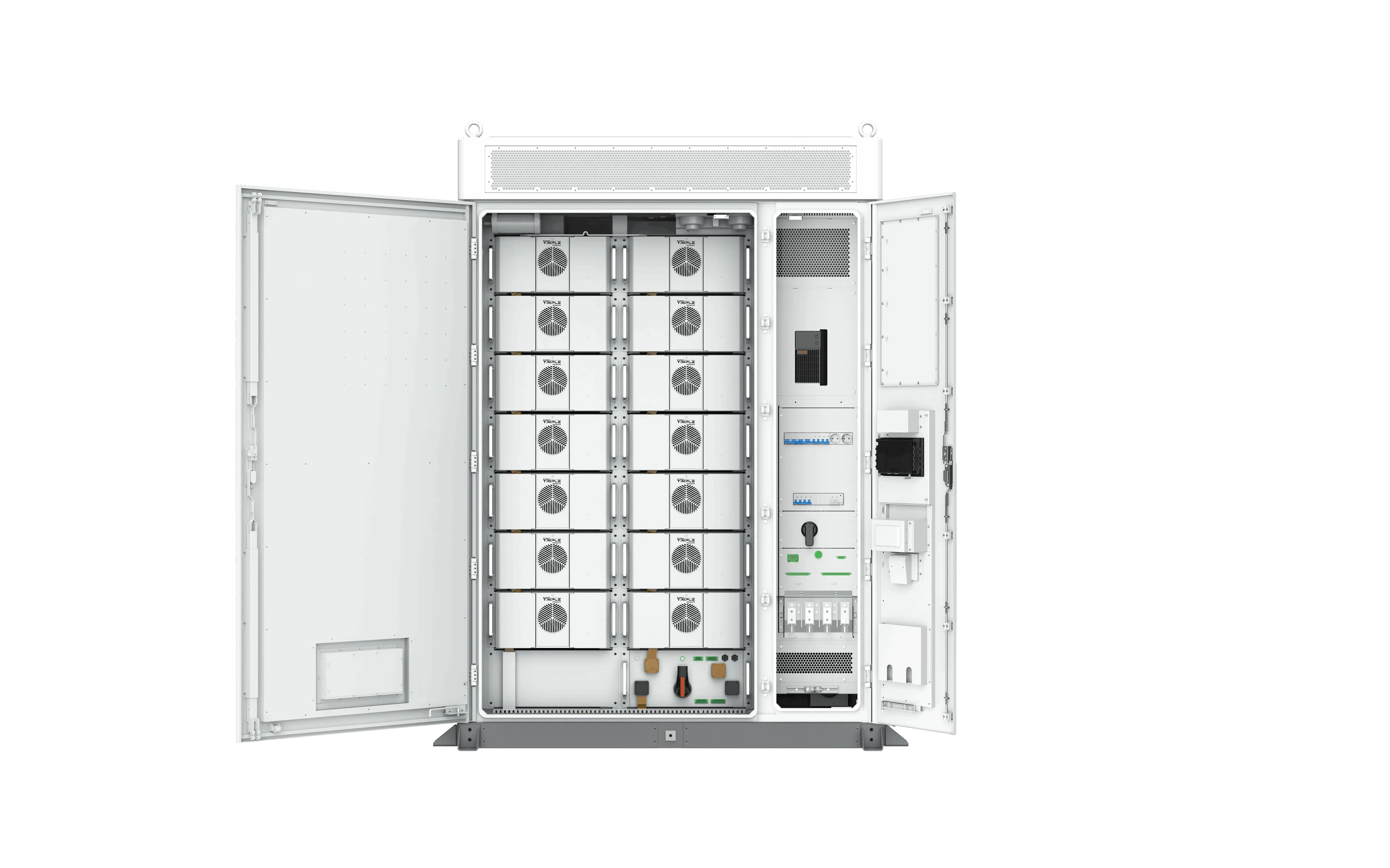

First of all, Aelio cabinet uses high-density, high-safety, and high-performance LFP batteries. There are two models with capacity of 100kWh and 200kWh. When used in a single cabinet or multiple cabinets, it can charge and discharge stably according to the set working modes at different time periods, and the large-capacity battery cell of 280Ah also reduces the intial cost of the system.
Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system efficiency and shorten the investment return period.
In addition, the cabinet also has multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and overtemperature. It is also equipped with fireproof materials and 4 levels of fire protection system, which can promptly detect and respond to potential fire risks, effectively control the spread of fires and reduce the risk of safety accidents.
The cabinet is suitable for various C&I PV&ESS scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation
| Attribute | AELIO-P50B200 |
| Rated AC output power [kW] | 50 |
| Rated AC output current [A] | 72.2 |
| Max. AC output apparent power [kVA] | 55 |
| Max. AC output current [A] | 83.6 |
| Nominal grid voltage [V] | 3P4W, 400/230, 380/220 |
| Nominal grid frequency [Hz] | 50/60 |
| Adjustable power factor range | 1 (0.8 Leading ~ 0.8 Lagging) |
| THDi (Rated power) [%] | < 3 |
| Battery type | LFP / 280Ah |
| Rated battery capacity [kWh] | 200 |
| Rated battery voltage [V] | 716.8 |
| Battery voltage range [V] | 560 ~ 817.6 |
| Discharge depth [%] | 90 |
| Rated charge/discharge current [A] | 140 |
| Max charge/discharge current [A] | 160 (80 × 2) |
| Max. PV input power [kW] | 100 |
| Max. PV input voltage [V] | 1000 |
| Start output voltage [V] | 200 |
| Rated input voltage [V] | 650 |
| MPPT voltage range [V] | 160 ~ 950 |
| No. of MPP trackers / Strings per MPP tracker | 5 (2 per MPPT) |
| Max. input current [A] | 40 |
| Max. input short circuit current [A] | 50 |
| Dimensions(with Inverter) (W×H×D) [mm] | 2070 × 2420 × 1200 |
| Dimensions (without Inverter) (W×H×D) [mm] | 1680 × 2420 × 1200 |
| Weight (with Inverter) [kg] | 2800 |
| Weight (without Inverter) [kg] | 2700 |
| Operating ambient temperature range [°C] | -30 ~ 55 |
| Relative humidity (Non-condensing) [%] | 0 ~ 95 |
| Max. operating altitude [m] | 3000 |
| Cooling concept | Smart air cooling |
| Ingress protection | Cabinet: IP55; Inverter: IP66 |
| Fire protection | Aerosol(Optional:Novec1230 ) / Water |
| Topology | Non-isolated |
| Standard | IIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3 |
| Attribute | AELIO-P60B100 |
| Rated AC output power [kW] | 60 |
| Rated AC output current [A] | 86.6 |
| Max. AC output apparent power [kVA] | 66 |
| Max. AC output current [A] | 100.3 |
| Nominal grid voltage [V] | 3P4W, 400/230, 380/220 |
| Nominal grid frequency [Hz] | 50/60 |
| Adjustable power factor range | 1 (0.8 Leading ~ 0.8 Lagging) |
| THDi (Rated power) [%] | < 3 |
| Battery type | LFP / 280Ah |
| Rated battery capacity [kWh] | 100 |
| Rated battery voltage [V] | 358.4 |
| Battery voltage range [V] | 280 ~ 408.8 |
| Discharge depth [%] | 90 |
| Rated charge/discharge current [A] | 140 |
| Max charge/discharge current [A] | 160 (80 × 2) |
| Max. PV input power [kW] | 120 |
| Max. PV input voltage [V] | 1000 |
| Start output voltage [V] | 200 |
| Rated input voltage [V] | 650 |
| MPPT voltage range [V] | 160 ~ 950 |
| No. of MPP trackers / Strings per MPP tracker | 6 (2 per MPPT) |
| Max. input current [A] | 40 |
| Max. input short circuit current [A] | 50 |
| Dimensions(with Inverter) (W×H×D) [mm] | 1310 × 2300 × 1140 |
| Dimensions (without Inverter) (W×H×D) [mm] | 1020 × 2300 × 1150 |
| Weight (with Inverter) [kg] | 1600 |
| Weight (without Inverter) [kg] | 1500 |
| Operating ambient temperature range [°C] | -30 ~ 55 |
| Relative humidity (Non-condensing) [%] | 0 ~ 95 |
| Max. operating altitude [m] | 3000 |
| Cooling concept | Smart air cooling |
| Ingress protection | Cabinet: IP55; Inverter: IP66 |
| Fire protection | Aerosol(Optional:Novec1230 ) / Water |
| Topology | Non-isolated |
| Standard | IIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3 |
| Attribute | AELIO-P60B200 |
| Rated AC output power [kW] | 60 |
| Rated AC output current [A] | 86.6 |
| Max. AC output apparent power [kVA] | 66 |
| Max. AC output current [A] | 100.3 |
| Nominal grid voltage [V] | 3P4W, 400/230, 380/220 |
| Nominal grid frequency [Hz] | 50/60 |
| Adjustable power factor range | 1 (0.8 Leading ~ 0.8 Lagging) |
| THDi (Rated power) [%] | < 3 |
| Battery type | LFP / 280Ah |
| Rated battery capacity [kWh] | 200 |
| Rated battery voltage [V] | 716.8 |
| Battery voltage range [V] | 560 ~ 817.6 |
| Discharge depth [%] | 90 |
| Rated charge/discharge current [A] | 140 |
| Max charge/discharge current [A] | 160 (80 × 2) |
| Max. PV input power [kW] | 120 |
| Max. PV input voltage [V] | 1000 |
| Start output voltage [V] | 200 |
| Rated input voltage [V] | 650 |
| MPPT voltage range [V] | 160 ~ 950 |
| No. of MPP trackers / Strings per MPP tracker | 6 (2 per MPPT) |
| Max. input current [A] | 40 |
| Max. input short circuit current [A] | 50 |
| Dimensions(with Inverter) (W×H×D) [mm] | 2070 × 2420 × 1200 |
| Dimensions (without Inverter) (W×H×D) [mm] | 1680 × 2420 × 1200 |
| Weight (with Inverter) [kg] | 2800 |
| Weight (without Inverter) [kg] | 2700 |
| Operating ambient temperature range [°C] | -30 ~ 55 |
| Relative humidity (Non-condensing) [%] | 0 ~ 95 |
| Max. operating altitude [m] | 3000 |
| Cooling concept | Smart air cooling |
| Ingress protection | Cabinet: IP55; Inverter: IP66 |
| Fire protection | Aerosol(Optional:Novec1230 ) / Water |
| Topology | Non-isolated |
| Standard | IIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3 |
| Attribute | AELIO-P50B100 |
| Rated AC output power [kW] | 50 |
| Rated AC output current [A] | 72.2 |
| Max. AC output apparent power [kVA] | 55 |
| Max. AC output current [A] | 83.6 |
| Nominal grid voltage [V] | 3P4W, 400/230, 380/220 |
| Nominal grid frequency [Hz] | 50/60 |
| Adjustable power factor range | 1 (0.8 Leading ~ 0.8 Lagging) |
| THDi (Rated power) [%] | < 3 |
| Battery type | LFP / 280Ah |
| Rated battery capacity [kWh] | 100 |
| Rated battery voltage [V] | 358.4 |
| Battery voltage range [V] | 280 ~ 408.8 |
| Discharge depth [%] | 90 |
| Rated charge/discharge current [A] | 140 |
| Max charge/discharge current [A] | 160 (80 × 2) |
| Max. PV input power [kW] | 100 |
| Max. PV input voltage [V] | 1000 |
| Start output voltage [V] | 200 |
| Rated input voltage [V] | 650 |
| MPPT voltage range [V] | 160 ~ 950 |
| No. of MPP trackers / Strings per MPP tracker | 5 (2 per MPPT) |
| Max. input current [A] | 40 |
| Max. input short circuit current [A] | 50 |
| Dimensions(with Inverter) (W×H×D) [mm] | 1310 × 2300 × 1140 |
| Dimensions (without Inverter) (W×H×D) [mm] | 1020 × 2300 × 1150 |
| Weight (with Inverter) [kg] | 1600 |
| Weight (without Inverter) [kg] | 1500 |
| Operating ambient temperature range [°C] | -30 ~ 55 |
| Relative humidity (Non-condensing) [%] | 0 ~ 95 |
| Max. operating altitude [m] | 3000 |
| Cooling concept | Smart air cooling |
| Ingress protection | Cabinet: IP55; Inverter: IP66 |
| Fire protection | Aerosol(Optional:Novec1230 ) / Water |
| Topology | Non-isolated |
| Standard | IIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3 |
